ERA-8800
【儀器管理員】賴韋僑 / simman[at]gate.sinica.edu.tw / 02-2789-8359

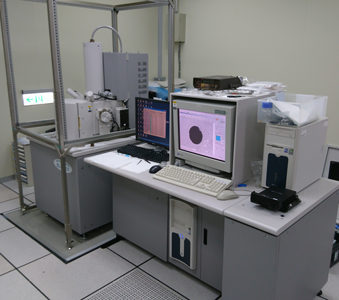

- 儀器全名:掃描式電子顯微鏡 Scanning ElectronMicroscope (SEM/E-beam writer) 日本ELIONIX ERA-8800
- 儀器位置:中央研院物理所B1無塵室(B1 Cleanroom)
- 系統功能簡介:
- Capabilities:本系統裝有 NPGS (Nanometer Pattern Generation System)。
- 可曝出的最小線寬與間距原則上可達 100nm 以下,但實際上可達線寬是由所需 的前後製程要求, 及所需用的電子阻劑性質及剖面圖決定。
- Specifications:
- Electron gun: ZrO/W thermal field emission
- Resolution: 1.5nm(30KV), 5nm(1KV)
- Acceleration voltage: 0.3~30KV
- Magnification: 20 ~600000
- Specimen driving range:
- X:0~40mm
- Y:0~80mm
- Z:4~36mm
- Rotation:360 degree
- Electrical shift of field of view:
- X-Y:±30 μm
- Rotation:360 degree
- Holder size: 14mm x 14mm (max.)
- Chargement: 1,000 NTD/1hr.
*The cost of consumables and regular maintenance is divided equally according to the proportion of time spent- 訓練費及考核費:1,000 NTD/1hr
- 代工費用為訓練費2倍
