CsI(Tl) Detector
Veto-Plastic Scintillator (Three side covering) |

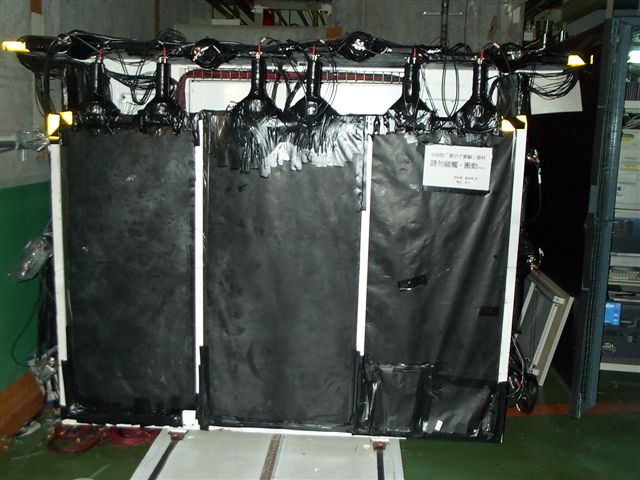

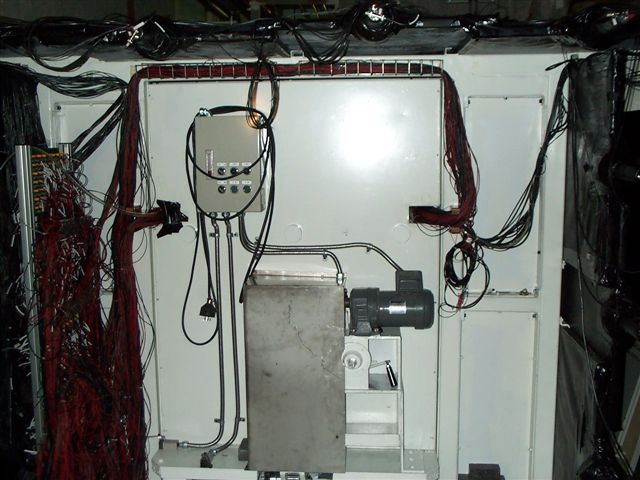

Motorized shielding Gate |

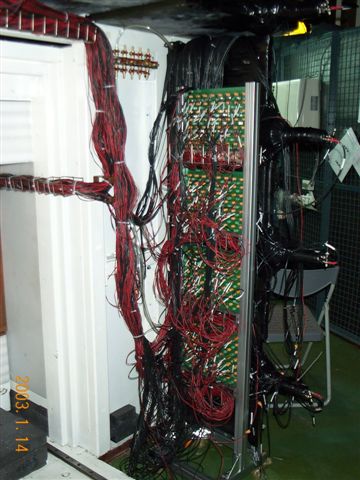

Connecting-Board (From PMT's ) |

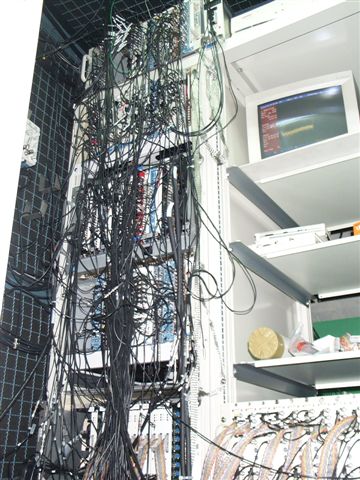

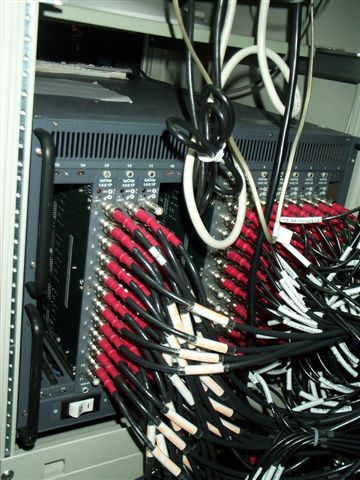

Forest of Electronics (Related Electronic Modules) |
World LARGEST Single Crystal of CsI(Tl) Covered with Al (40 cm.) |
High Voltage Modules |

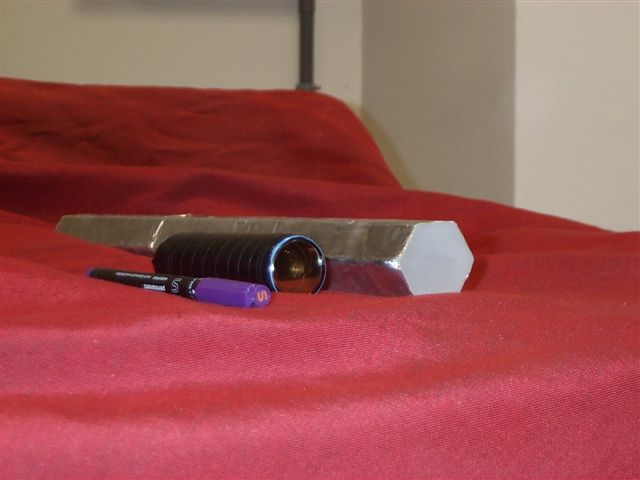

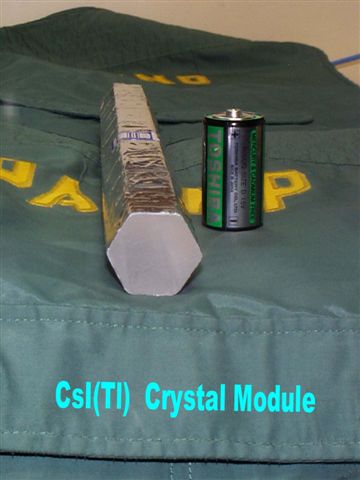

Crystal of CsI(Tl) [20+20 cm] along with 29 mm PMT |
Target Area [Both CsI(Tl) & LBHP-Ge Detectors during installation] |

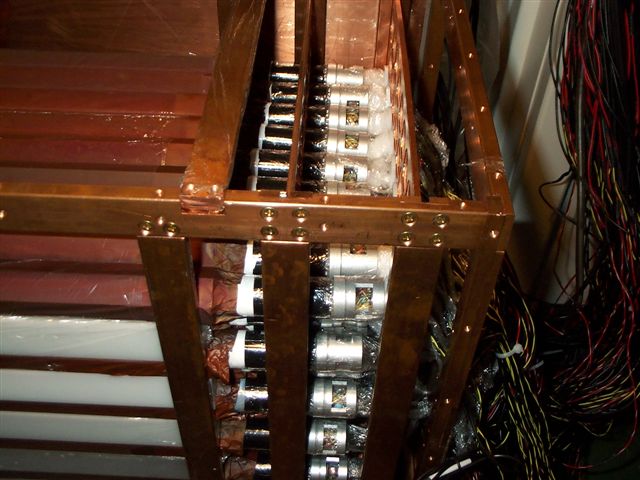

Installed CsI(Tl) crystals connected with corresponding PMT's (Side view) |

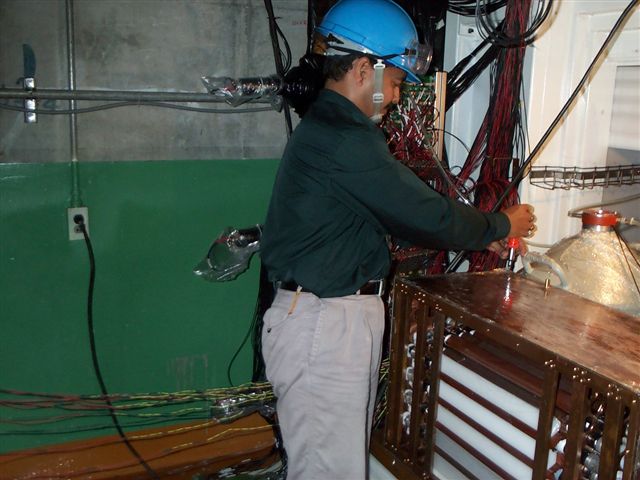

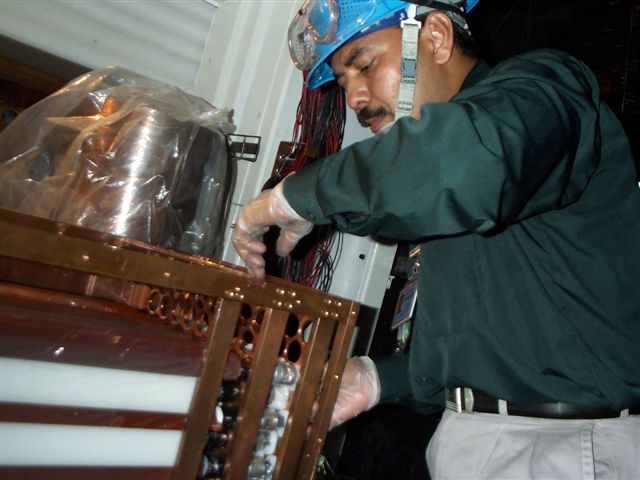

Installation of CsI(Tl) rapped with OFHC-Cu Be Careful !! |

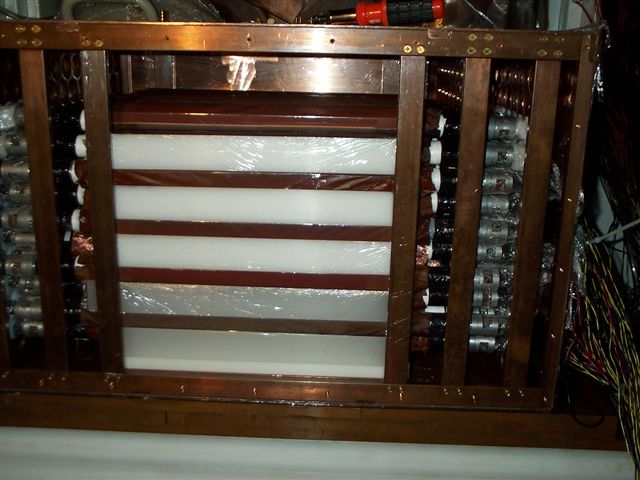

CsI(Tl) [Top view] |
Cu-Box R U Sure about contamination ?? |

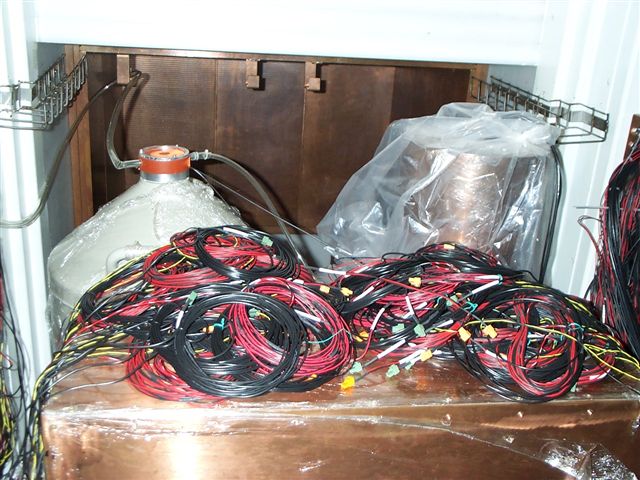

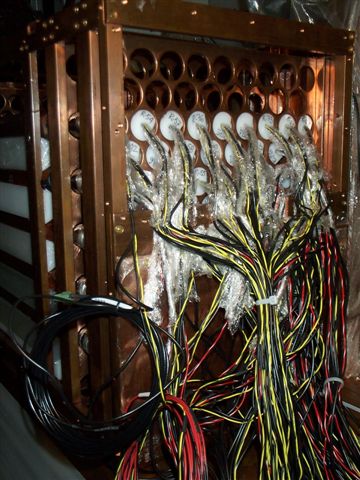

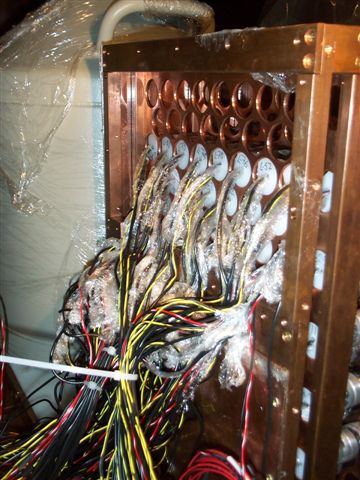

PMT's with cables and level [L-side] |
PMT's with cables and level [R-side] |

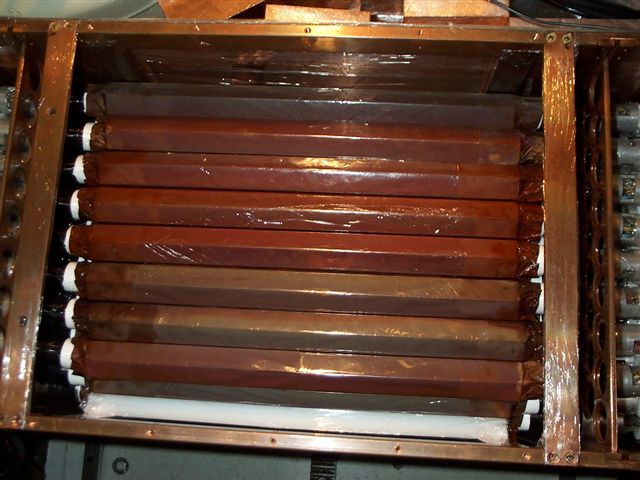

CsI(Tl) - Open Cu-Box [Side-Top View] |

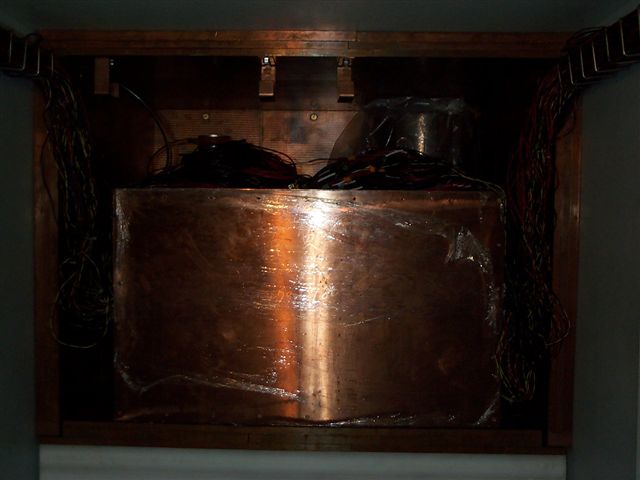

CsI(Tl) - Close Cu-Box [Front View] |
Inside Target-Area Shielding (Plastic & Boron-loaded Plastic) |

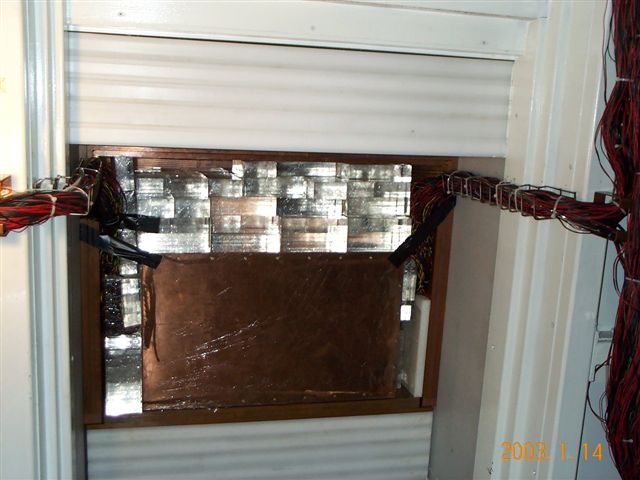

Final Closing of Shielding for Period - II ( Feb., 22, 2003 - ?) |
